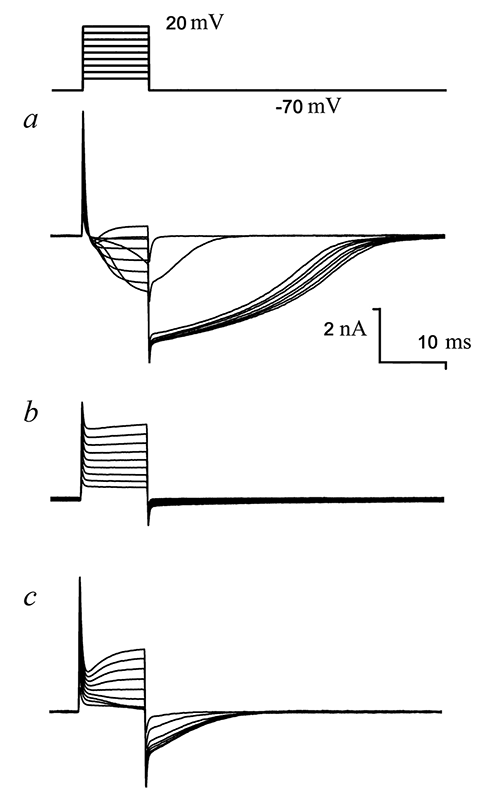

Figure 5. The effect of nifluminic acid (NFA) on chloride currents in the Purkinje neuron. Protocol of rectangular depolarization pulses with step +10 mV from holding potential –70 mV is shown at the top of the picture.
a — Ionic currents in response or pulses serial. Outside of the membrane solution H2 (sodium-free), solution B2 (cesium) in micropipette.
b — Ionic currents after adding of 100 μM NFA.
c — Wash out of NFA by solution H2 during 5 min.
