Biomedical Chemistry: Research and Methods 2025, 8(3), e00284

TEMPERATURE DEPENDENCE OF COLLATERAL ACTIVITY OF THERMOSTABLE RECOMBINANT CRISPR NUCLEASES Cas12b OBTAINED BY ONE-STEP PURIFICATION WITH METAL-CHELATE CHROMATOGRAPHY AFTER HETEROLOGOUS EXPRESSION

L.K. Kurbatov1*, O.S. Timoshenko1, S.A. Khmeleva1, K.G. Ptitsyn1, E.V. Suprun2, S.P. Radko1, A.V. Lisitsa1

1Institute of Biomedical Chemistry, 10 Pogodinskaya str., Moscow, 119121 Russia; *e-mail: kurbatovl@mail.ru
2Chemistry Faculty of M.V. Lomonosov Moscow State University, Lenin Hills, 1/3, Moscow, 119991 Russia

Keywords:recombinant CRISPR nuclease Cas12b; single-stage purification; collateral nuclease activity; temperature dependence

DOI:10.18097/BMCRM00284

The whole version of this paper is available in Russian.

Thermostable CRISPR/Cas nucleases are considered as promising enzymes for development of next-generation DNA diagnostics by coupling loop-mediated isothermal amplification of nucleic acids (LAMP) with selective CRISPR/Cas detection of specific amplicons. In this paper, we present the results of testing the collateral activity of CRISPR nuclease AapCas12b and three variants of CRISPR nuclease BrCas12b (wild type and two mutants) obtained using simplified purification in the typical temperature range of LAMP - from 56°C to 72°C. It was shown that the use of one-step metal-chelate chromatography by excluding a stage of enzymatic removal of N-terminal sequences translated together with the target protein allows for obtaining recombinant CRISPR nucleases BrCas12b with a sufficiently high level of collateral activity. Temperature dependences of collateral activity differed among the studied BrCas12b variants. The obtained results can be useful in selecting thermostable CRISPR nucleases Cas12b for development of test systems based on a combination of LAMP and CRISPR/Cas detection.

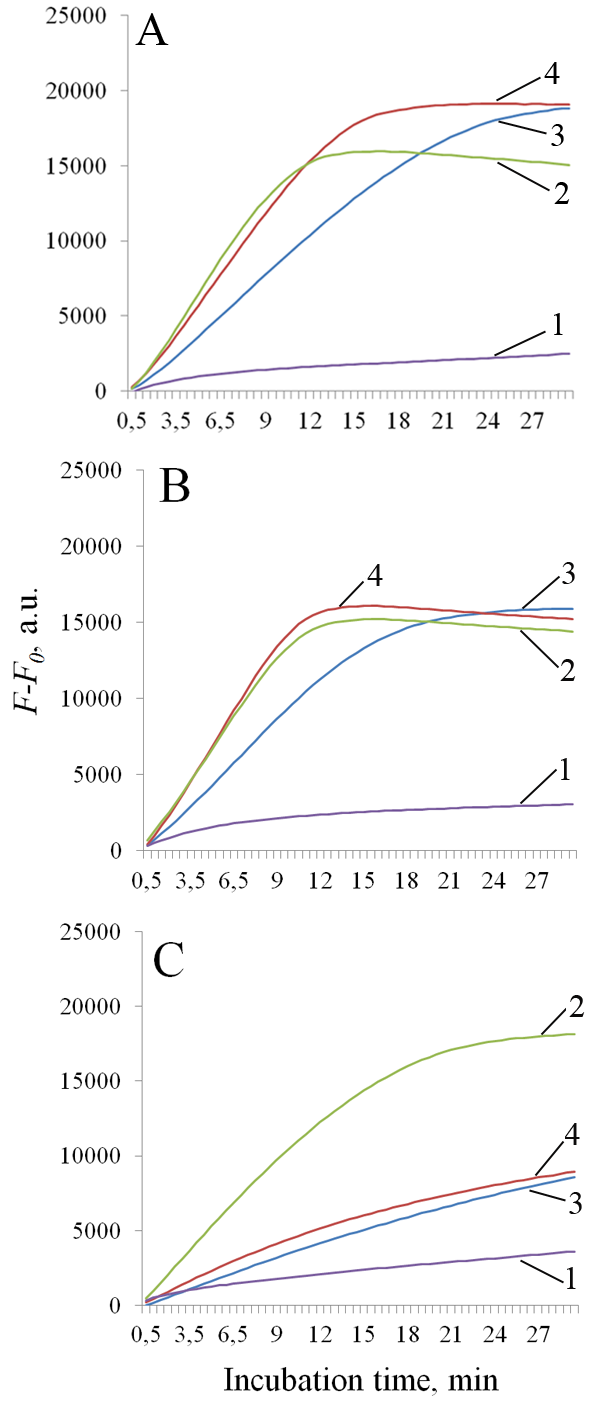

Figure 1. Representative dependences of fluorescence on reaction time during cleavage of DNA reporters by recombinant nucleases fp-AapCas12b, fp-BrCas12b, fp-BrCas12b-FNLDTA, and fp-BrCas12b-RFND. Reaction temperature: 56°C (A), 64°C (B), 72°C (C). Curves 1, 2, 3, and 4 are fp-AapCas12b, fp-BrCas12b, fp-BrCas12b-FNLDTA, and fp-BrCas12b-RFND, respectively. The fluorescence in samples without the addition of the target DNA (F0) was subtracted from the fluorescence measured in samples where the target was present (F).

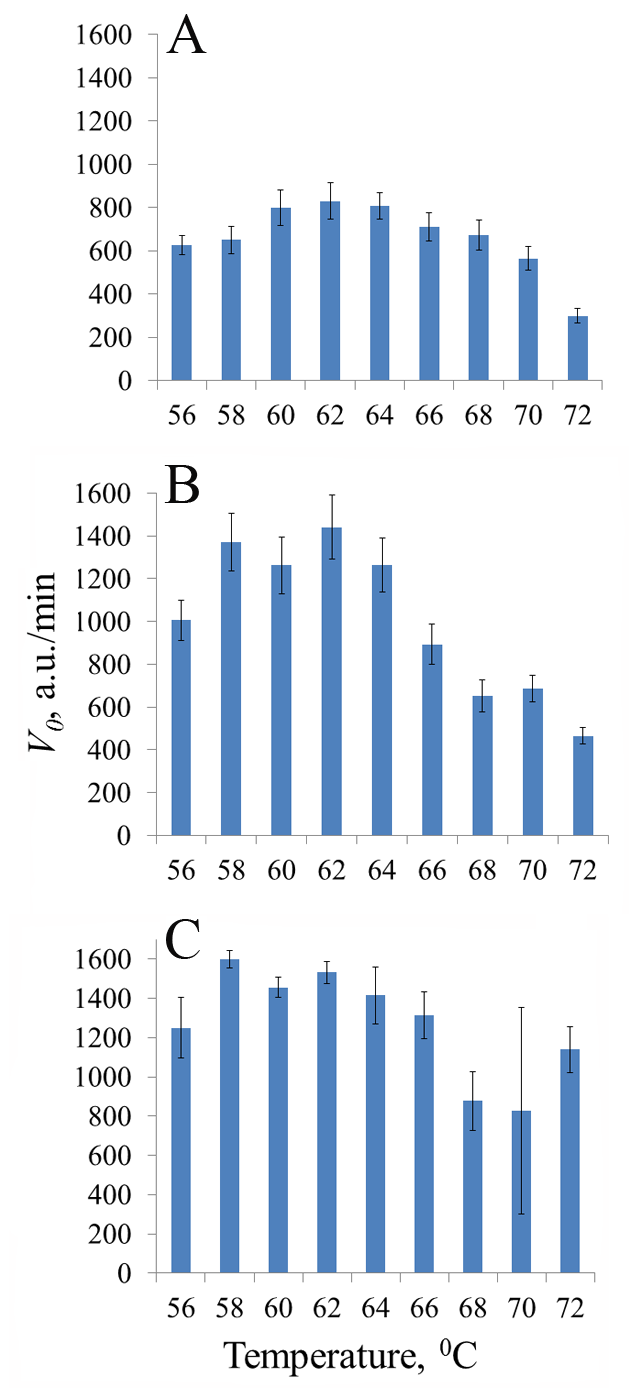

Figure 2. Initial rate V0 of cleavage of DNA reporters by recombinant nucleases fp-BrCas12b-FNLDTA (A), BrCas12b-RFND (B), and fp-BrCas12b (C) at different reaction temperatures. The arithmetic means and standard deviations for three independent measurements are shown.

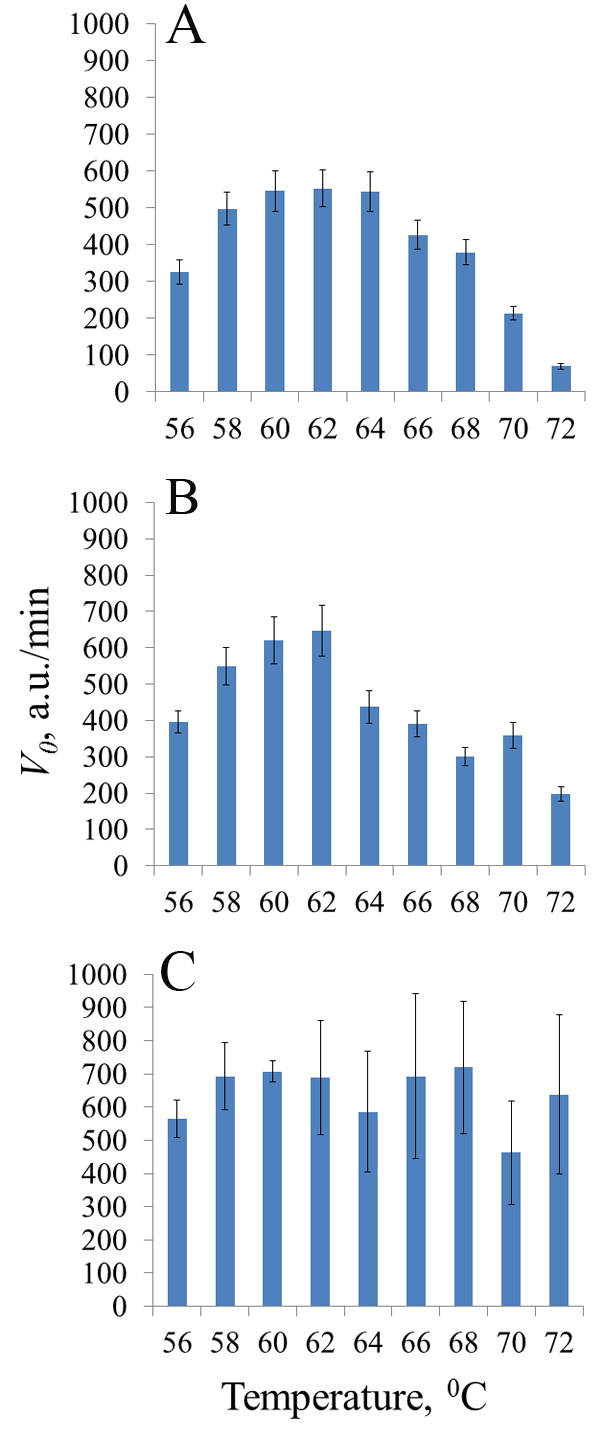

Figure 3. Initial rate V0 of cleavage of DNA reporters by recombinant nucleases fp-BrCas12b-FNLDTA (A), BrCas12b-RFND (B) and fp-BrCas12b (C) at different reaction temperatures. Purification of the target proteins was carried out using buffer solutions from [15]. The arithmetic means and standard deviations for three independent measurements are shown.

Table 1. Sequences of DNA oligonucleotides used in the work. The sequence complementary to the sequence of the T7 promoter is shown in italics. The protospacer sequences of the synthetic target DNA and sequences of DNA templates, encoding spacer sequences in the guide RNA (gRNA), are highlighted in bold.

Name

Sequence (5’ → 3’)

T7F

TAATACGACTCACTATAGGG

gRNA

CAGCGCTTCAGCGTTCTTCGGTGCTAACCATCTACATTTCCAC TAACTTTGGTTAGTGGAAATATAGATAGCCGTTGTGACTGAGTGACGTGTTAGGTCACC GTAGCACATGACACAACTGCACTGGTCAGCCTGTAGCTAACCACCTTCCCCTATAGTGAGTCGTATTA

SARS-T-F

TGCACAATTTGCCCCCAGCGCTTCAGCGTTCTTCGGAATGTCGCGCATTG

SARS-T-R

CAATGCGCGACATTCCGAAGAACGCTGAAGCGCTGGGGGCAAATTGTGCA

FUNDING

The study was performed within the framework of the Program for Basic Research in the Russian Federation for a long-term period (2021–2030) (No. 122030100170-5).
